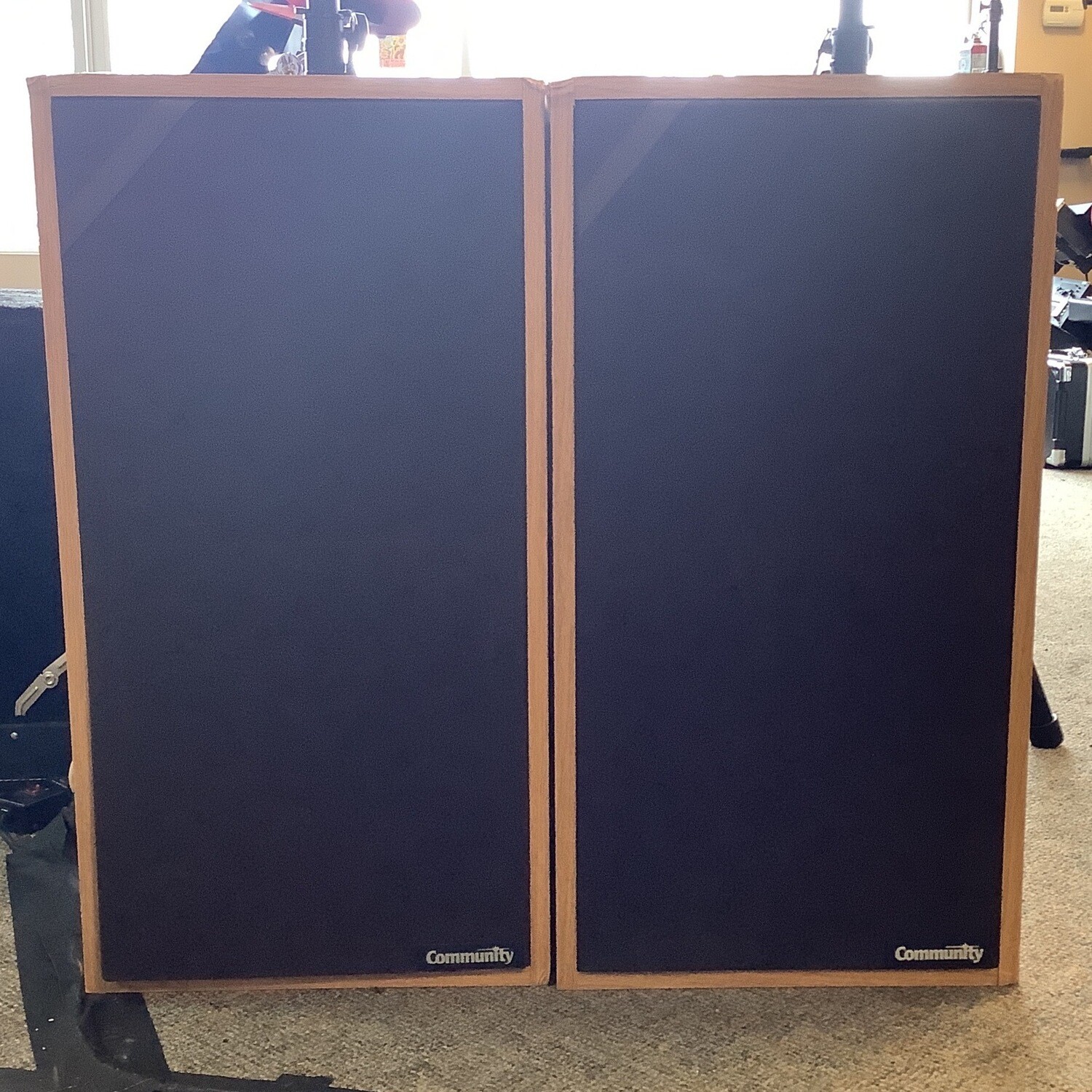

INV 2141 The Community CSV52 is a robust, high-sensitivity, three-way, full-range loudspeaker system designed for various applications such as theaters, clubs, houses of worship, sporting facilities, entertainment venues, and industrial audio/visual setups. Let’s dive into the details: Features:High Sensitivity, Low Distortion: The CSV52 delivers clear sound with minimal distortion. PowerSense™ Dynamic Driver Protection: A built-in protection circuit ensures reliable performance. Wavefront Coherent™ Design: Ensures proper signal alignment across all frequency bands for consistent directivity and exceptional sonic clarity. Simulated Oak Laminated Exterior: The attractive simulated oak finish makes it suitable for unobtrusive permanent installations. Specifications: Loudspeaker Type: Three-Way, Full-Range Bass Reflex System Frequency Response: 40 Hz to 18 kHz Power Handling: 200W RMS (500W Program) Sensitivity at 1W/1M: 98 dB SPL Nominal Dispersion: 90° Horizontal, 60° Vertical Nominal Impedance: 4 ohms Crossover Frequencies: 500 Hz and 5 kHz Drivers: One PZT high-frequency driver coupled to a Pattern Control horn One 6 1/2" midrange driver mounted to a compound horn (rotatable for horizontal mounting) One 15" woofer (Ferrofluid-cooled) for extended bass response Speaker Protection: PowerSense DDP (Dynamic Driver Protection) Input Connections: Dual Neutrik Speakon in Parallel, Dual 1/4" Phone Jacks in Parallel Enclosure Material: Simulated oak laminate-covered high-density particle board Dimensions:Height: 33.5 inches (851 mm) Width: 18 inches (457 mm) Depth: 18 inches (457 mm) Weight: 95 lbs. (43.1 kg) Shipping Weight: 99.1 lbs. (45 kg)
